Creating an Interactive Heatmap for Indian Districts with Python: A Comprehensive Guide
Published on: 19th August 2024
Introduction
Data visualization is an essential tool in the data science toolkit, enabling us to present complex information in an easily digestible format. In this guide, I'll demonstrate how to create an interactive heatmap of Indian districts using Python. This tutorial will walk you through key data science methodologies, data cleaning techniques, and how to leverage powerful Python libraries to create a professional-looking visualization.
Tools and Libraries
For this project, we utilized a range of Python libraries, each chosen for its specific strengths in handling data, geospatial information, and visualization:
- Tkinter & CustomTkinter: These libraries are used for building a user-friendly graphical interface, allowing users to easily interact with the application.
- pandas: A must-have library for data manipulation and analysis, pandas helped us handle our Excel files, clean the data, and prepare it for visualization.
- geopandas: Built on top of pandas, this library is designed for working with geospatial data. It enabled us to manipulate shapefiles representing India's districts and states.
- Bokeh: A powerful visualization library, Bokeh was used to create the interactive heatmap, complete with hover tools and dynamic color mapping.
- fuzzywuzzy: This library was key in matching district names between the dataset and the shapefile using fuzzy string matching, essential for handling inconsistencies in naming conventions.
Data Science Methodology
The project follows a structured data science methodology, which can be broken down into the following steps:
1. Problem Definition
The primary goal was to create a visual representation of regional spending patterns across Indian districts. This required accurate mapping of data values to geographical locations.
2. Data Collection
The data was sourced from an Excel file containing district-level spending data. Additionally, shapefiles representing Indian districts and states were used for mapping purposes.
3. Data Cleaning
Data cleaning was crucial for ensuring the accuracy of the visualization. We employed several techniques, including:
- Standardizing Names: All district names were converted to lowercase, and special characters were removed to ensure consistency.
- Fuzzy Matching: Used to match district names between the dataset and shapefiles. This technique helps account for minor discrepancies, such as typos or variations in naming.
- Manual Corrections: Even with fuzzy matching, some district names required manual correction based on domain knowledge.
Other data cleaning options that could have been considered include:
- Regular Expression Matching: Advanced regex patterns could be used for more precise name matching, especially for complex naming conventions.
- Levenshtein Distance: An alternative to fuzzywuzzy, this algorithm measures the difference between two sequences, useful for identifying closely related district names.
4. Data Integration
I merged the cleaned dataset with the geographical data from the shapefiles. This step was critical for accurately mapping the spending data to the correct districts.
5. Data Visualization
Bokeh was used to create an interactive heatmap, allowing users to explore the data dynamically. Features like hover tools and a color legend made the visualization both informative and engaging.
Creating the Heatmap
Let’s dive deeper into the technical aspects of creating the heatmap.
Loading Shapefiles
Using geopandas, we loaded shapefiles that provide the geographical boundaries for Indian districts and states. These boundaries were crucial for plotting the data accurately on the map.
Merging Data
The next step was to merge our cleaned dataset with the geographical data from the shapefiles. We used pandas' powerful data manipulation capabilities to join the data based on the district names.
Color Mapping

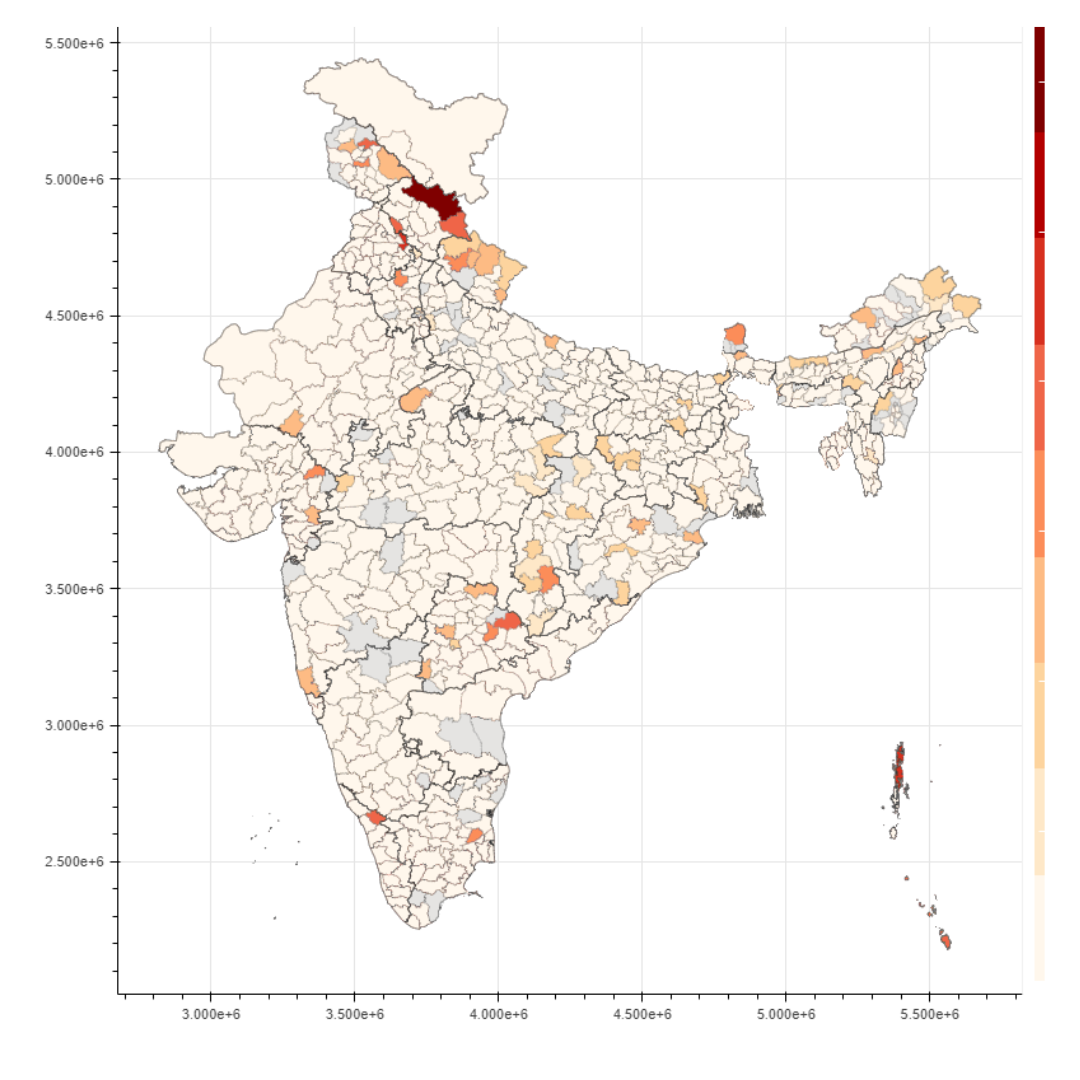

To represent the spending data visually, we used Bokeh’s LinearColorMapper. This tool allowed us to map our data values to a color scale, which was then applied to the district shapes on the map.
In this app, I've introduced a dynamic feature that allows users to plot maps based on rankings. This feature enables you to visualize data effectively by assigning specific color ranges to different sets or ranks, making it easier to interpret large datasets at a glance. By simply selecting the ranking option, the app categorizes data into predefined ranges, automatically assigning distinct colors to represent each range. This intuitive color-coding helps highlight patterns, trends, and outliers, providing a visually impactful way to explore and compare ranked data across regions. This functionality enhances both the aesthetic and analytical aspects of map visualization.

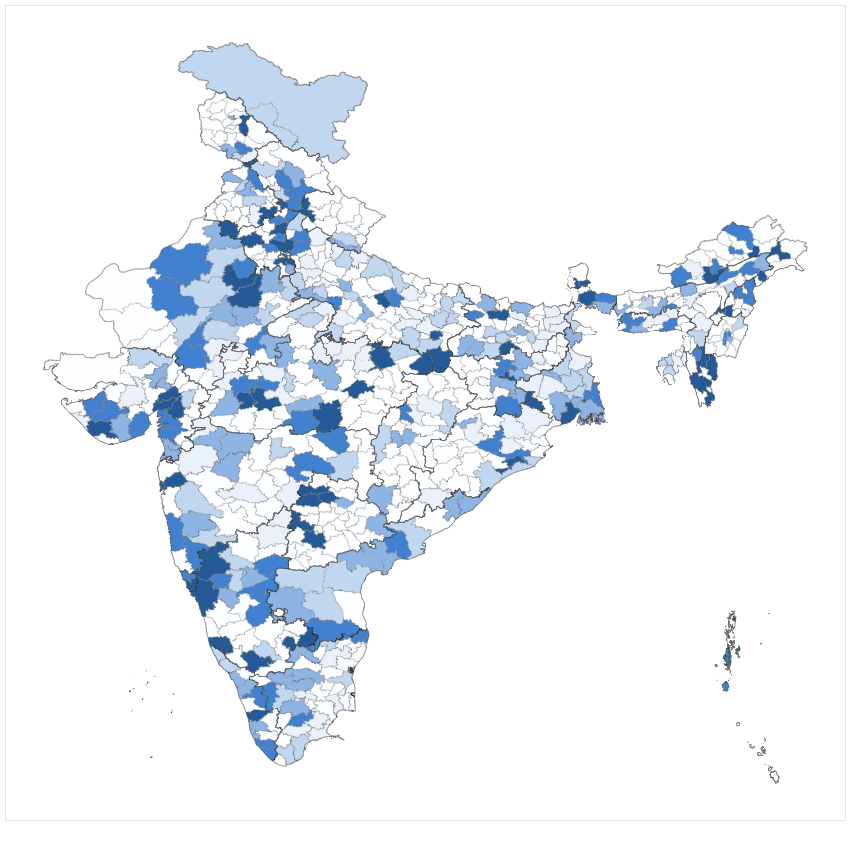

Image on the right shows ranking wise blue shades e.g. Rank 1-80 is dark blue 81-160 is lighter and so on
Interactive Features
One of the standout features of the heatmap is its interactivity. Bokeh’s hover tool allows users to hover their cursor over a district to see detailed data values, such as the regional spending in that district. This feature transforms the heatmap from a static image into an interactive data exploration tool.
Handling Missing Data
Throughout the process, we encountered districts that were either missing from the dataset or the shapefile. These discrepancies were identified and addressed as follows:
- Identifying Missing Districts: We used set operations to find and log districts that were missing from either the dataset or the shapefile.
- User-Corrected Data: The application allows users to correct or add missing district names directly within the interface. This ensures that any anomalies can be quickly resolved, maintaining the accuracy of the final visualization. These corrected distric names are stored in a Jason File which during next visualisation are used for matching the missing districts. Thus at every iteration the number of missing districts are reduced subsiquently.
Next Steps and Further Enhancements
While the heatmap created in this project is highly informative, there’s always room for further enhancement. Here are a few ideas:
- Incorporating Time Series Data: Visualize changes in spending patterns over time by creating an animated heatmap.
- Adding More Interactivity: Integrate additional interactive features, such as filtering options, to allow users to explore the data more deeply.
- Enhancing Data Accuracy: Use more sophisticated data cleaning and matching techniques, such as machine learning-based approaches, to further improve data accuracy.
- Deploying the Visualization Online: Host the heatmap on a web platform and integrate it with a live data feed for real-time updates.
Conclusion
In this guide, we demonstrated how to create an interactive heatmap of Indian districts using Python. By employing a structured data science methodology and leveraging powerful libraries like pandas, geopandas, and Bokeh, we were able to produce a highly informative and interactive visualization.
Data visualization is an ever-evolving field, and the techniques covered here are just the beginning. By experimenting with different tools and approaches, you can unlock even greater insights from your data.
Call to Action: Ready to create your own interactive maps? Start by exploring the libraries mentioned in this post and experiment with your datasets. With Python's vast ecosystem, the possibilities for data visualization are limitless. Happy coding!
